Abstract
This project evaluates the effectiveness of transformer-based models—Vision Transformer (ViT), Swin
Transformer, and BEiT—for automated diagnosis using chest X-ray images from the
CheXpert dataset.
We systematically compare these architectures by assessing accuracy, loss, and interpretability through
attention map visualization. Our experiments reveal that BEiT achieves superior
generalization performance, consistently outperforming ViT and Swin on unseen data.
Further analysis demonstrates that models trained on substantially smaller datasets (11 GB versus over 400 GB)
retain comparable diagnostic accuracy, significantly reducing computational resources.
Attention visualization confirms that BEiT exhibits superior localization of clinically relevant regions,
enhancing interpretability and clinical trustworthiness.
These results position BEiT as a robust and resource-efficient architecture
for medical image analysis tasks,
highlighting the importance of comprehensive benchmarking in model selection for clinical applications.
Dataset
We used the CheXpert-v1.0-small dataset, a downsized version of the original
CheXpert dataset. It contains 224,316 chest radiographs from 65,240 patients, labeled with 14 clinical
observations.
The labels were generated using an automated labeling system capable of detecting and classifying findings,
including those with inherent uncertainty.
To ensure labeling reliability, a validation set of 200 studies was manually annotated by three board-certified radiologists.
Background

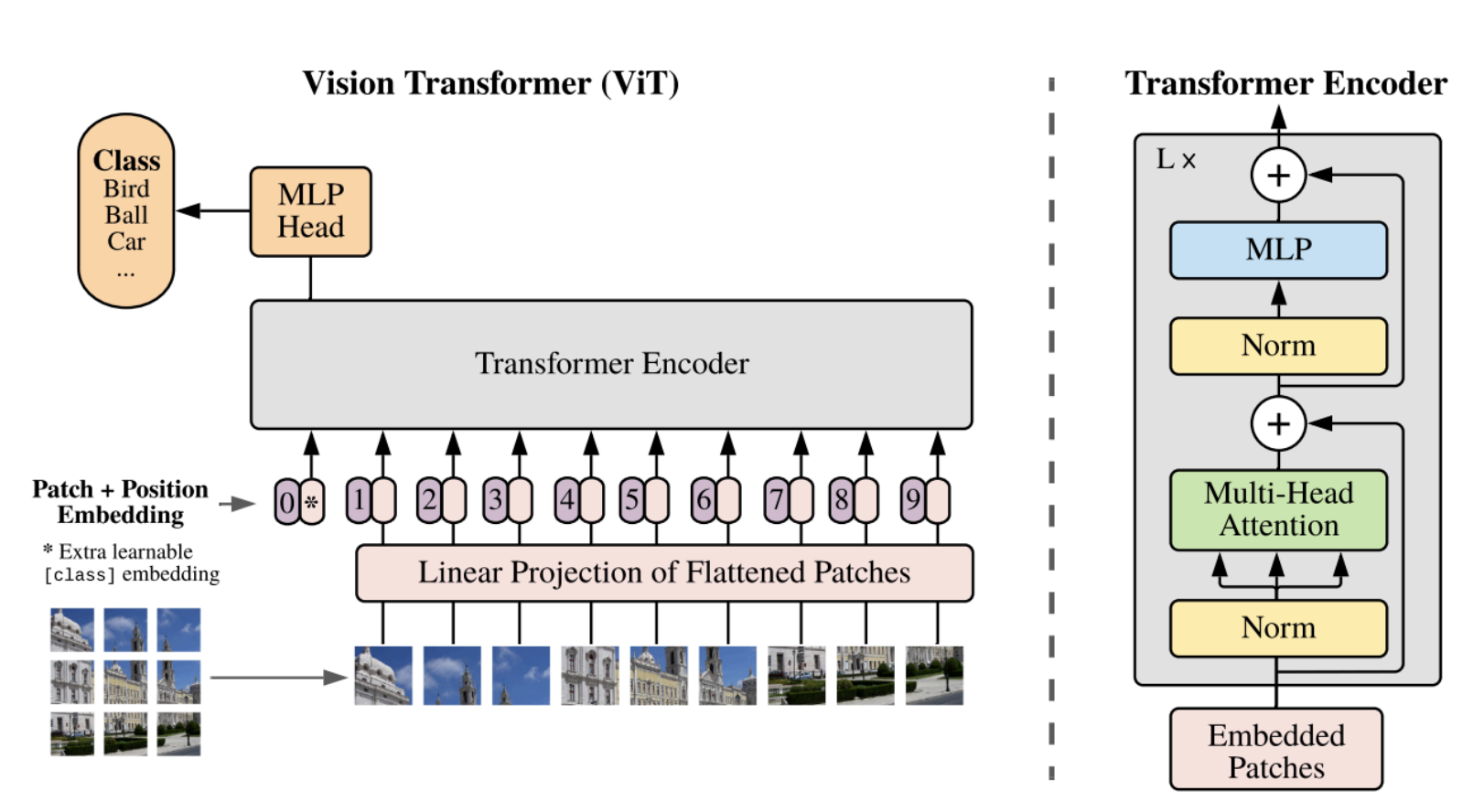

The Vision Transformer (ViT) applies the standard Transformer architecture directly to image patches, treating
them as sequences similar to words in natural language. It splits the input image into fixed-size patches and
processes them with self-attention mechanisms. ViT is known for its simplicity and scalability, performing
well
with large datasets but requiring significant data and compute resources to outperform CNN-based models.

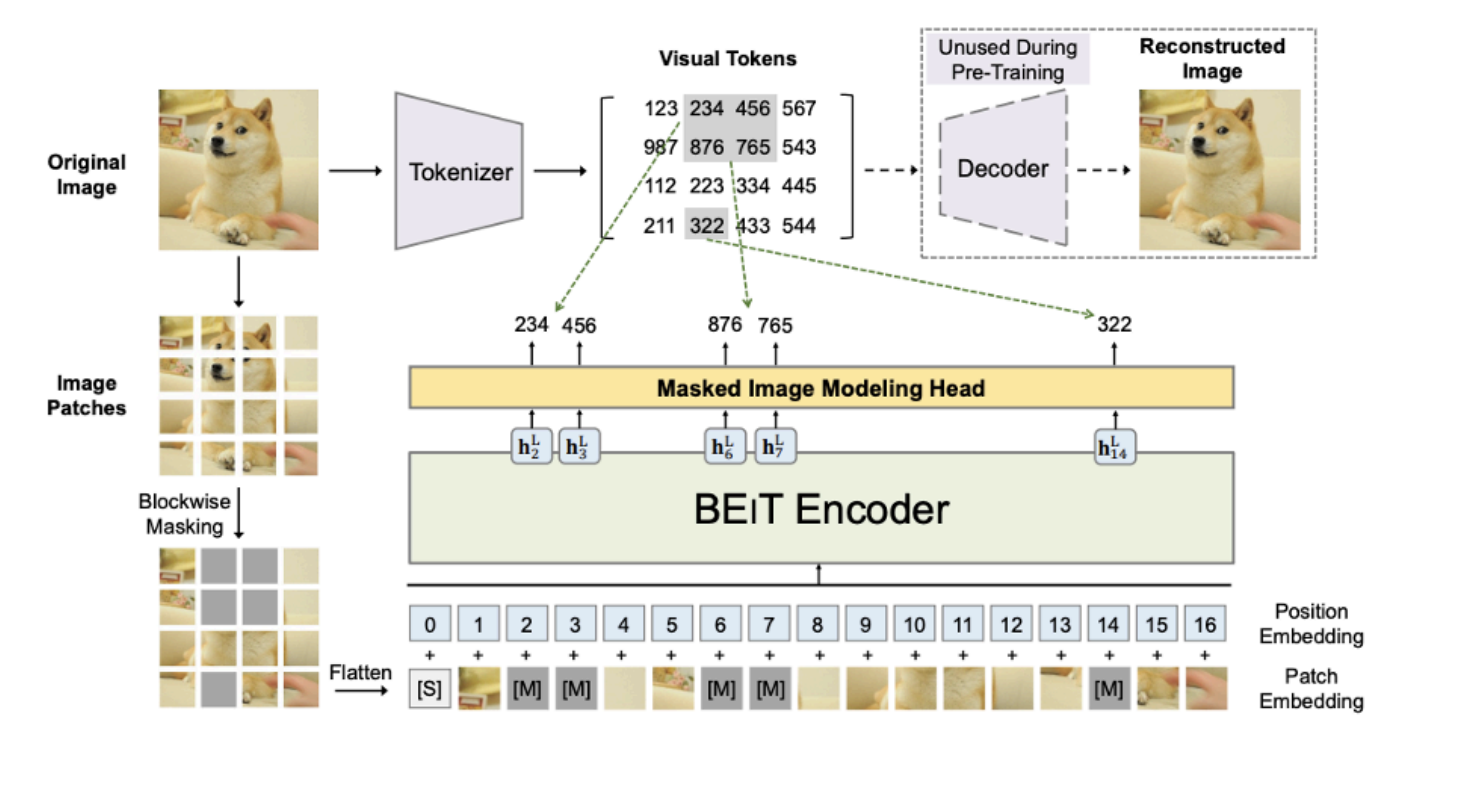

BEiT builds upon ViT by introducing a pretraining strategy similar to BERT in NLP. It treats image patches as
discrete visual tokens and learns bidirectional representations using a masked image modeling objective. This
enables the model to better capture contextual relationships within the image, significantly improving
performance in downstream tasks, especially when labeled data is limited.

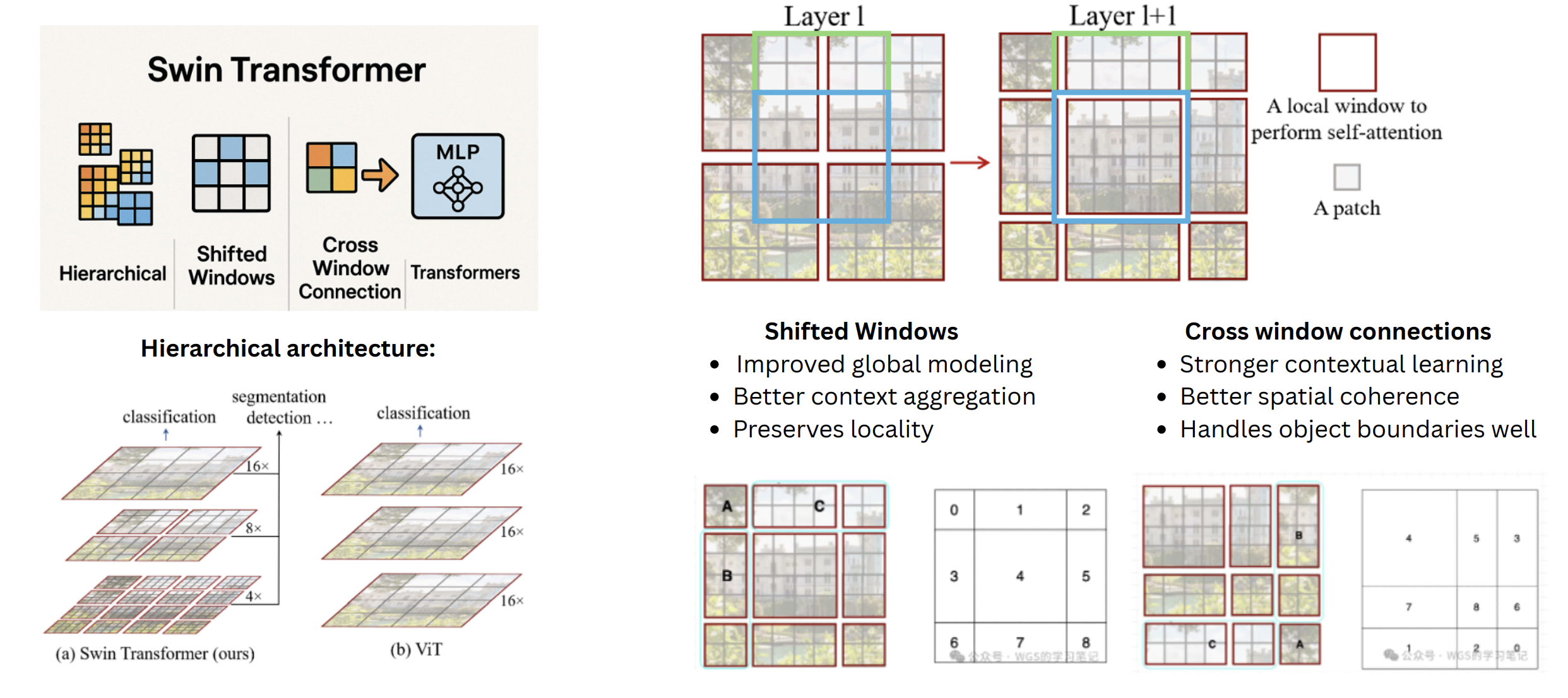

The Swin Transformer introduces a hierarchical architecture that processes images through non-overlapping
local
windows with shifted configurations across layers. This design enables both local and global representation
learning while maintaining computational efficiency. Its ability to model long-range dependencies and
multi-scale features makes it particularly effective for dense prediction tasks such as detection and
segmentation.
Results

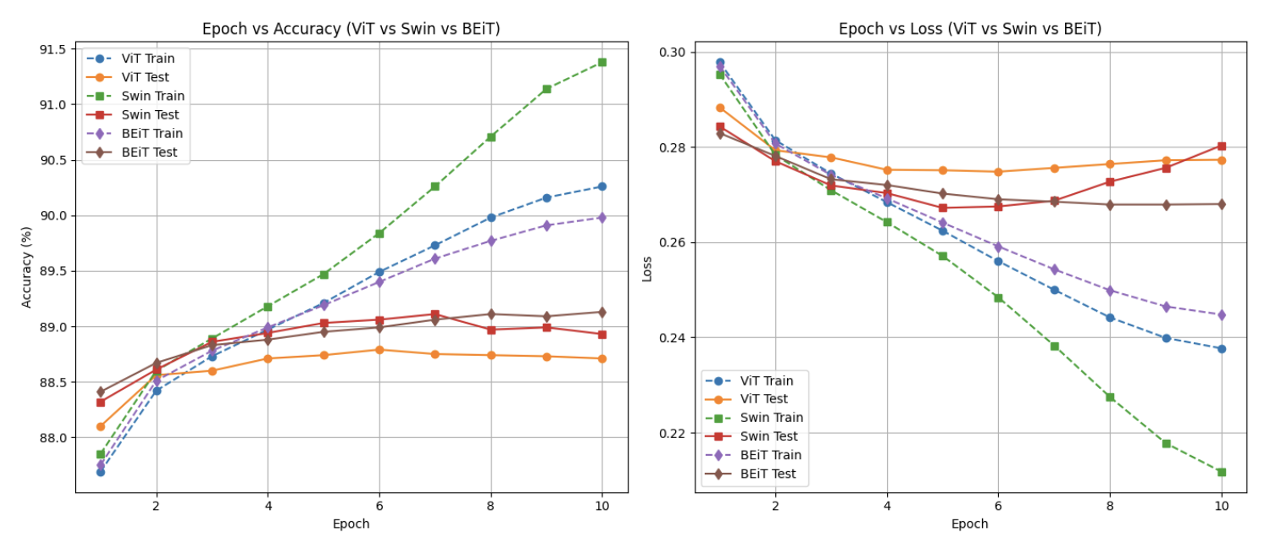

The graph presents a comparative evaluation of three transformer-based models:
Vision Transformer (ViT),
Swin Transformer, and
BEiT. Performance is tracked over 10 training epochs using
accuracy and
loss metrics on both training and test sets.
-
From the accuracy graph (left), the Swin Transformer shows the
highest training accuracy but underperforms on the test set. In contrast, the BEiT model achieves the best test accuracy across epochs, suggesting stronger
generalization to unseen data.
-
The loss graph (right) supports this observation. BEiT maintains the
lowest test loss throughout, indicating more consistent and reliable predictions. Meanwhile, ViT and Swin
show either plateauing or increasing test loss, pointing to possible overfitting.
Overall, BEiT demonstrates the best balance between learning and
generalization, making it the most robust among the three models in this evaluation.

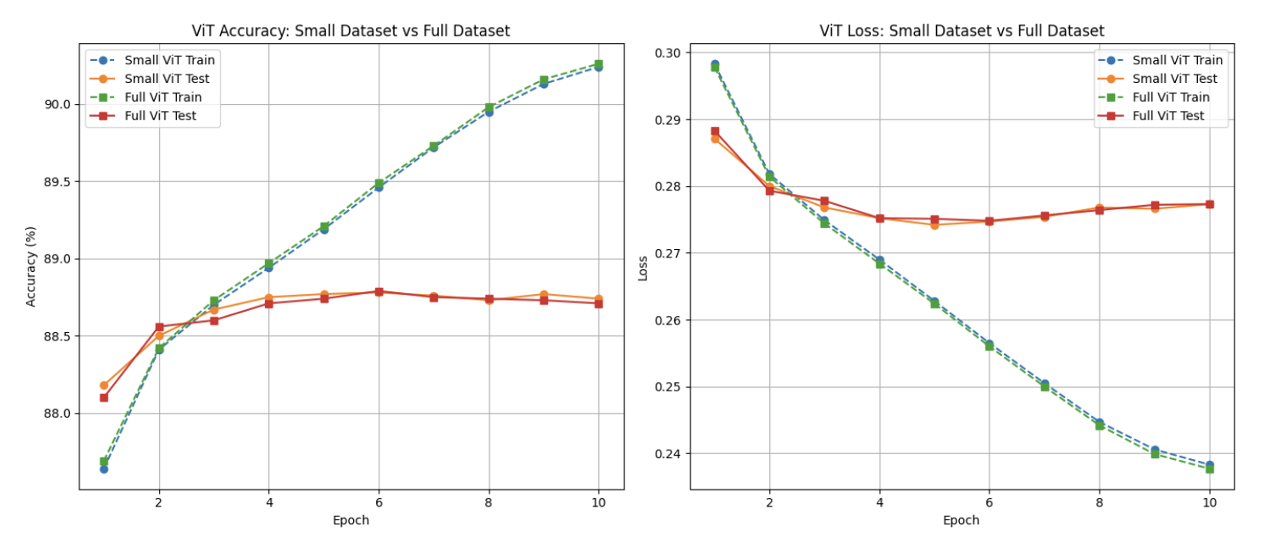

The comparison between the full and downsampled datasets shows that model performance remains nearly unchanged, even when trained on significantly less data.
Despite the full dataset being over 400 GB and the downsampled version only 11 GB, accuracy and loss metrics
are almost identical.
This finding highlights the potential for substantial resource savings—in
terms of both storage and computational cost, without sacrificing model
effectiveness.

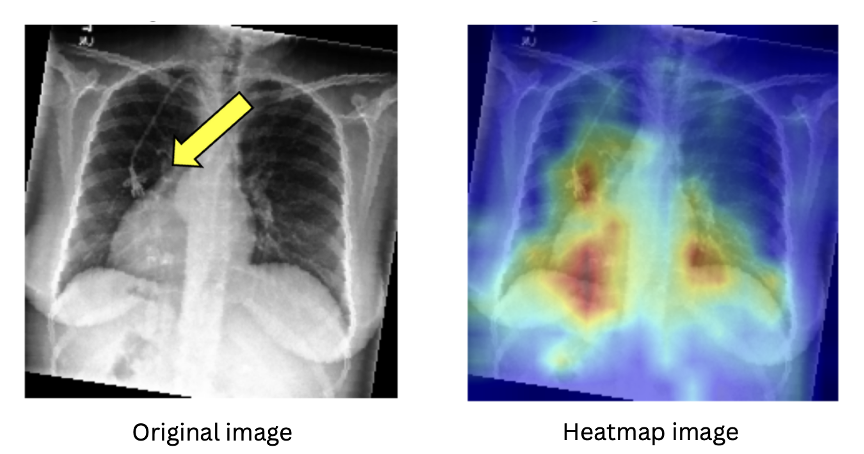

The CLS token, designed to aggregate global information across the image, can
be leveraged to create 2D attention heatmaps by visualizing how attention is distributed across patches.

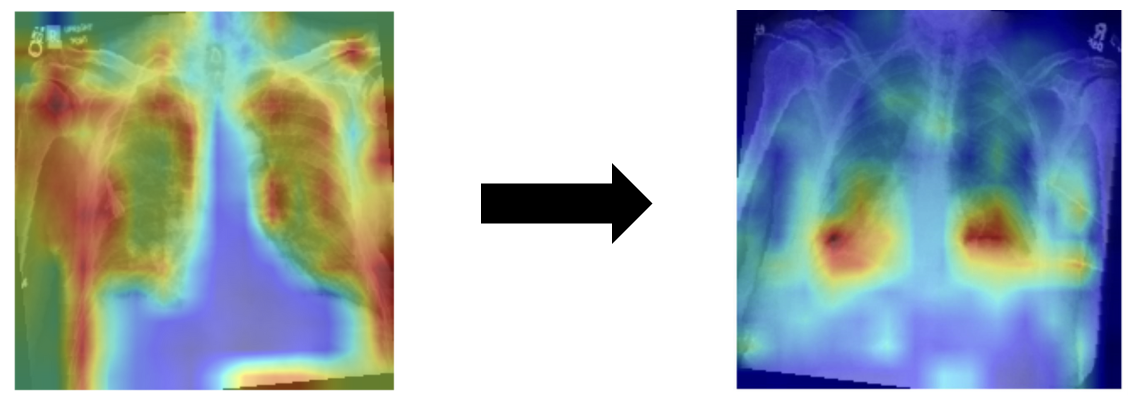

The heatmaps show that as the model improves, its attention becomes more focused on disease-relevant regions.
Initially, the model fails to localize lesions accurately, but after training updates, it correctly
highlights critical areas, demonstrating improved interpretability and
diagnostic alignment.
Attention Visualization: ViT vs BEiT
ViT Attention

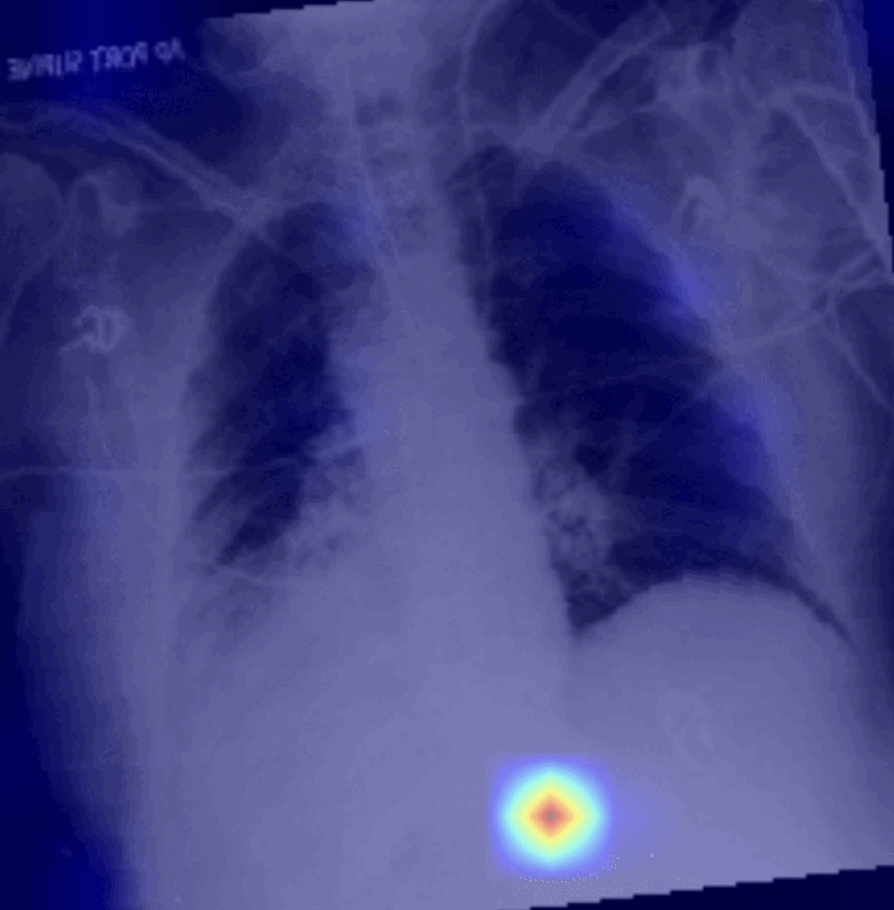

BEiT Attention
These GIFs illustrate how attention heads from two different transformer architectures—Vision Transformer (ViT) and BEiT—distribute focus
across chest X-ray images.
-

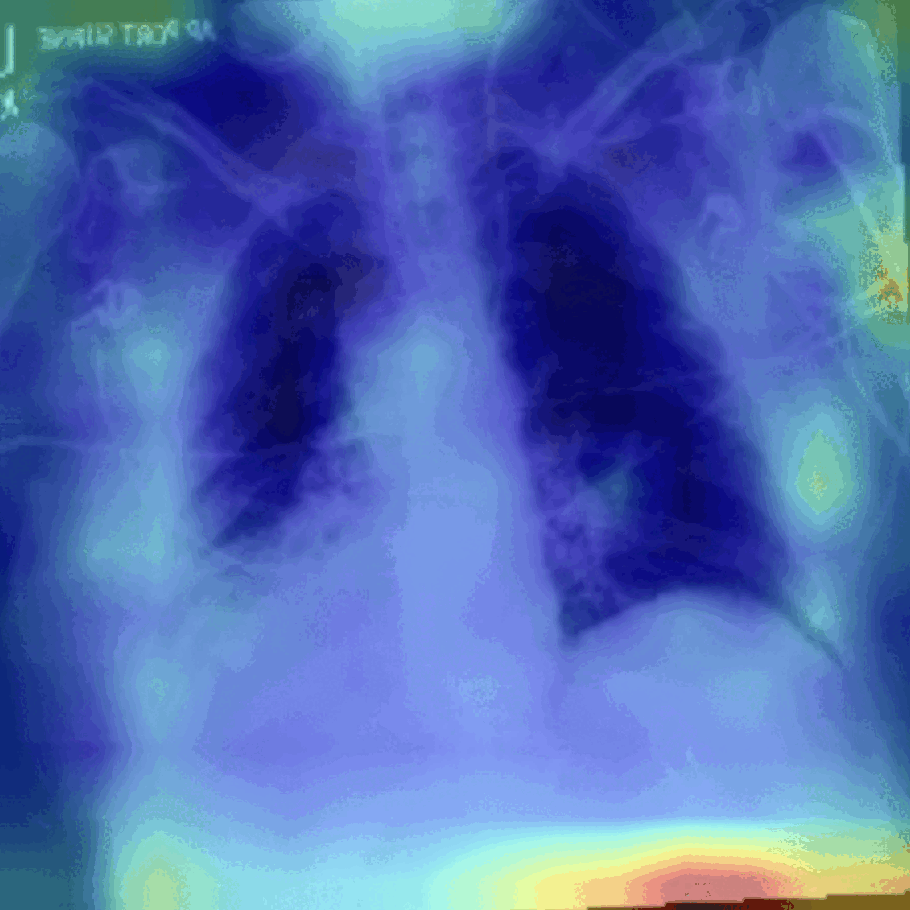

ViT Attention (Left):
Attention patterns in ViT appear fragmented and inconsistent. Some heads attend to irrelevant areas, such as
image corners or blank regions, with limited focus on the lesion site. This suggests lower interpretability
and insufficient specialization in directing attention toward disease-relevant features.
-
BEiT Attention (Right):
BEiT shows more structured attention patterns. Attention remains consistently
focused near the lesion or medically meaningful regions, reflecting stronger feature localization. This
indicates BEiT’s enhanced representation learning and better alignment with diagnostic cues.
Overall, these visualizations highlight BEiT’s more effective attention allocation, resulting in greater interpretability and reliability in medical imaging tasks compared to ViT.
Discussion And Future Work
We evaluated three transformer models (ViT, Swin, and BEiT Transformer) on the
CheXpert dataset, using both full and reduced versions to assess their
performance.
Among them, BEiT demonstrated the most robust results, attributed to its use of
masked-image modeling during pre-training, which enhances generalization and
the ability to capture diverse image features.
For future work, we plan to conduct robustness tests by introducing small Gaussian noise or perturbations to
input images, measuring performance degradation, and applying additional training to improve model resilience
if necessary.
Final Presentation Q&A
A1: Initially, the ViT model exhibited signs of overfitting when trained to predict only 4 labels. The limited binary classification task introduced significant randomness, causing the model to rely more on guesswork rather than genuine pattern learning.
After properly training the model to predict all 14 labels, enriching the complexity and diversity of the training data, the ViT model showed substantially reduced overfitting. This comprehensive labeling encouraged the model to learn robust features instead of memorizing limited patterns, resolving the previously observed issues.
Q2: Can you provide insights into why BEiT achieved superior performance compared to ViT and Swin Transformers?
A2: BEiT’s superior performance likely stems from its effective pre-training strategy, specifically masked image modeling, which encourages the model to learn generalized representations from image data.
Attention visualizations confirmed BEiT’s ability to consistently focus on clinically relevant regions, indicating enhanced internal representations and better decision-making capabilities for medical diagnosis tasks.
Q3: Can you provide more details on the benchmark comparison of the three transformer models?
A3: We conducted a comprehensive benchmark comparison of three transformer-based models—ViT, Swin, and BEiT—evaluating their accuracy, loss metrics, and interpretability through attention visualizations.
A detailed analysis highlighting each model's strengths and weaknesses can be found here.
Contributions
- Zheng Hexing (2023311430) – Investigated the Swin Transformer.
- Chang Hwan Kim (2024321234) – Implemented heatmap visualizations; contributed to the GitHub repository.
- Maftuna Ziyamova (2024311551) – Investigated Vision Transformers including ViT, BEiT, and Swin; contributed to heatmap analysis; presented the project; overviewed and improved the website/repo.
- Lee Woo Bin (2025311560) – Investigated the BEiT Transformer; created and submitted the GitHub repository.
